  • 1.  Ask for Slot not prompting or waiting for a customer response

    Posted 8 days ago
    Edited by Patrick Rohlf 8 days ago

    Hello Community!

    I have an odd situation with an Ask for Slot action that is not working as expected. First, it is not speaking the ETTS prompt to the caller. Second, it is reacting as if the caller (i.e. me running through test calls to the Bot) is responding to the prompt, which I can confirm that I am not.

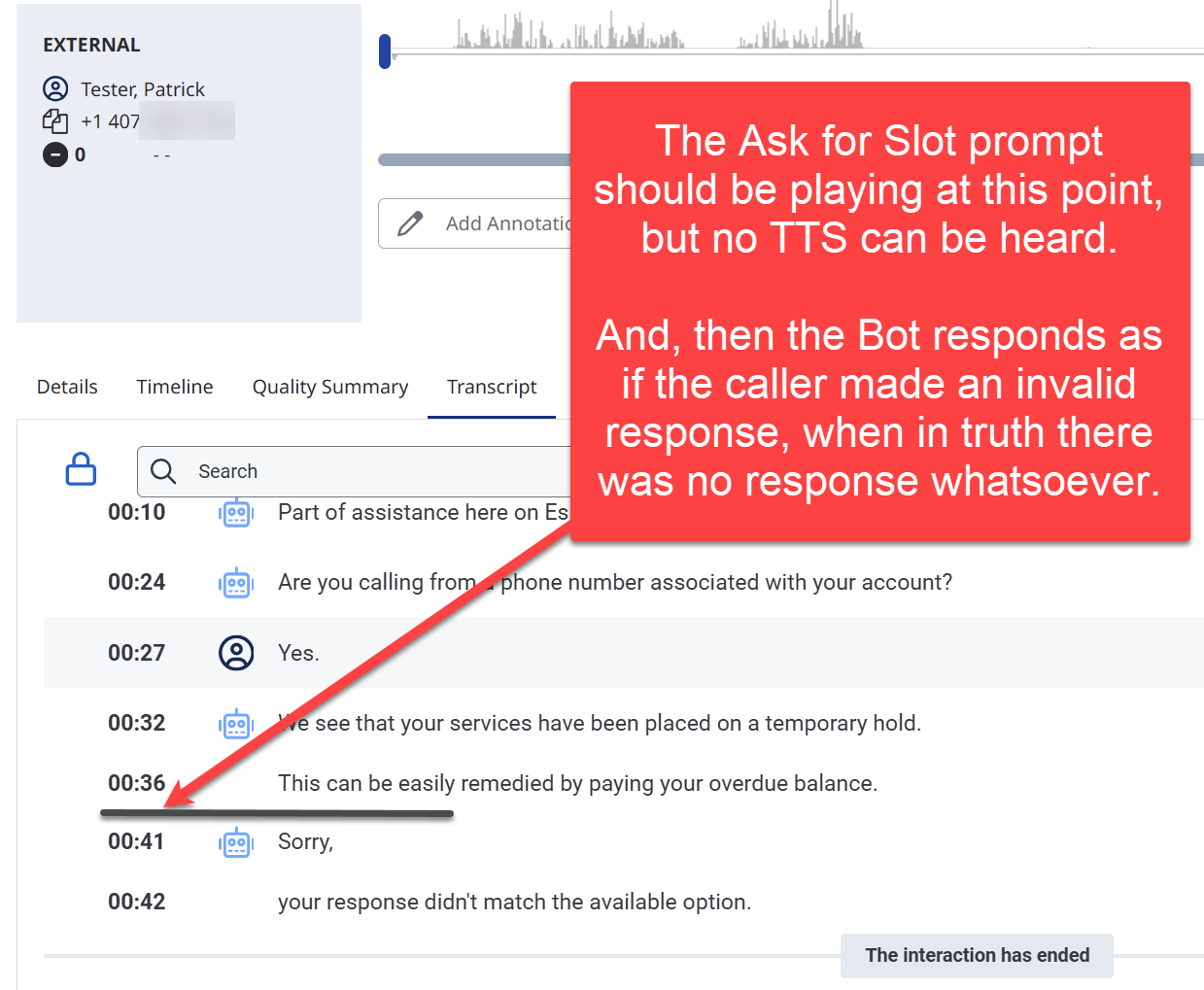

    Here is a simple Transcript of one of the failed interactions:


    Quick summary of the goal for this Slot is that a customer is provided with options of different methods for making a payment (i.e. online portal, secure phone system, etc.). The customer makes a choice and then the Bot uses the Slot Result to respond accordingly.

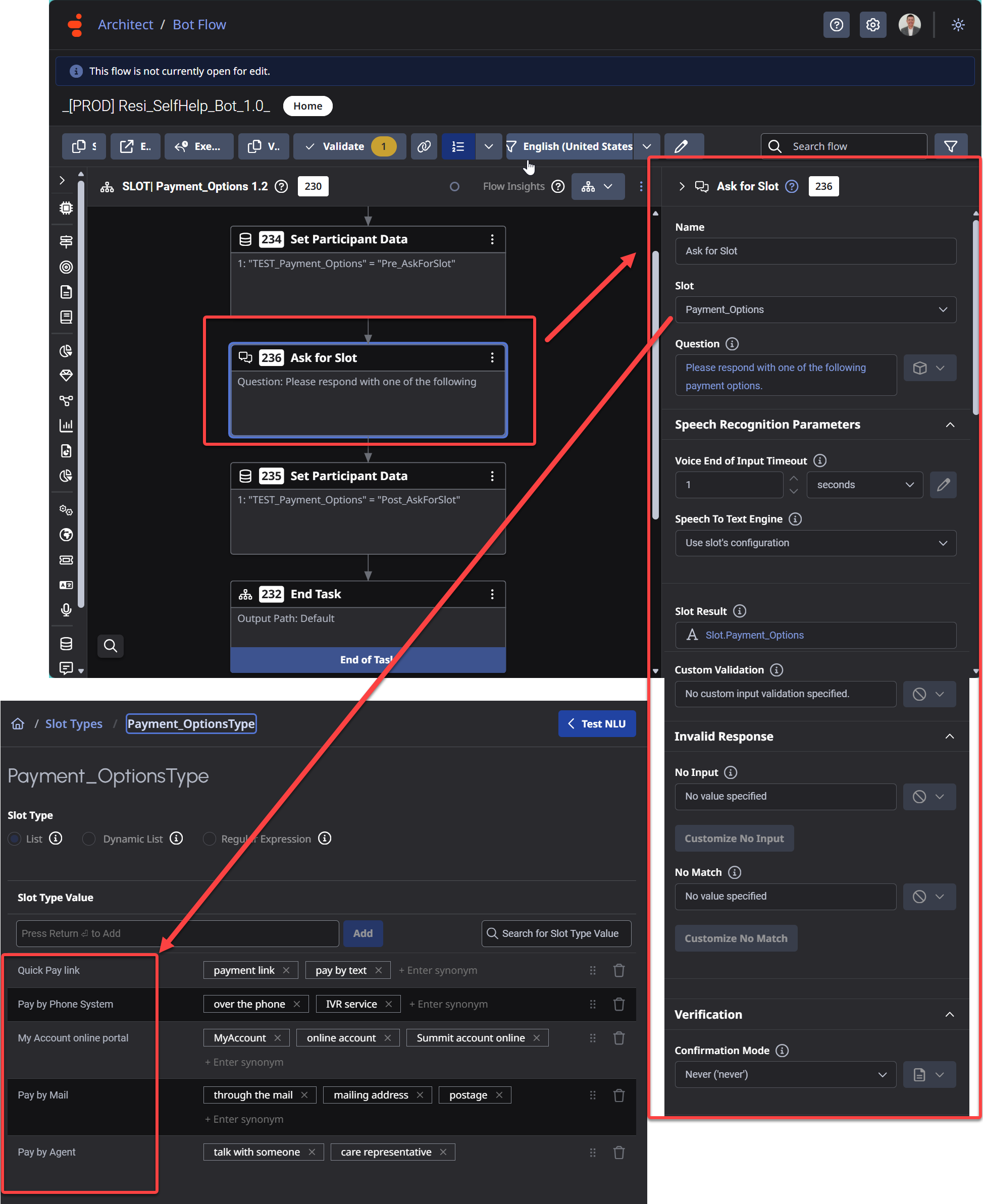

    Here is a screenshot of the Ask for Slot settings and also the Slot Type configuration.

    Every other Ask for Slot action which has been setup in this Bot Flow is working without issue. I hear prompts and the Bot waits for customer utterances before responding for all of the other actions (Ask for Slot, Yes/No, etc.).

    Some troubleshooting steps which I have already tried:

    • Deleted the failing Ask for Slot action and created a new action from scratch
    • Copied a working Ask for Slot action and reconfigured it for this Payment_Options Slot
    • Stepped through the Flow Execution Replay for the failed interactions (including this example) and found that there are no errors logged

    I appreciate any insight that anyone may have on this. Cheers.


    #ConversationalAI(Bots,VirtualAgent,etc.)

    ------------------------------
    Patrick Rohlf
    Contact Center Technologies Implementation Engineer
    ------------------------------



  • 2.  RE: Ask for Slot not prompting or waiting for a customer response

    Posted 8 days ago

    Hello Patrick,

    I was going to recommend following the flow through the Flow Execution Replay, but you're already way ahead of me. Do you see any different results if you raise the timeout threshold?

     If this is something that you can easily replicate, I would recommend opening a case with Product Support and sharing the case number with me so that I can monitor the issue internally.



    ------------------------------
    Jason Kleitz
    Online Community Manager/Moderator
    ------------------------------



  • 3.  RE: Ask for Slot not prompting or waiting for a customer response

    Posted 8 days ago

    Jason,

    Thank you for the response. The timeout threshold for No Input is set at the default of '7 seconds'. And the "no match" response from the action is happening in 5 seconds or less. It thinks that it got a response, but the Flow Replay shows that the Slot.Payment_Options value is NULL. It's very odd.

    Note: I have opened a support ticket: Case #0004130913

    I am currently working through some suggestions from the support engineer.



    ------------------------------
    Patrick Rohlf
    Contact Center Technologies Implementation Engineer
    ------------------------------



  • 4.  RE: Ask for Slot not prompting or waiting for a customer response

    Posted 8 days ago

    Try clearing that slot before the ask.



    ------------------------------
    Eric Berkshire
    NA
    ------------------------------



  • 5.  RE: Ask for Slot not prompting or waiting for a customer response

    Posted 8 days ago

    Eric,

    Thank you for the idea. The support engineer also made this same suggestion but making that addition did not resolve the issue.

    Also, just to note, at the point where this Ask for Slot action is hit and causes the unexpected behavior, it is the first time for this slot in this bot flow, and the first time that this bot flow has been called at all. So, in theory, there shouldn't already be an old value in that slot.

    I appreciate your response, though.



    ------------------------------
    Patrick Rohlf
    Contact Center Technologies Implementation Engineer
    ------------------------------



  • 6.  RE: Ask for Slot not prompting or waiting for a customer response
    Best Answer

    Posted 7 days ago

    Hi Patrick, just a small suggestion here, maybe it helps.

    Since you mentioned that this is the first time this particular Bot Flow is called, you might want to take a look at your Inbound Message Flow at the point where this Bot Flow is called.

    I remember having an issue in the past (that's like 2+ years ago, so I might not recall all the details), if I called a Bot Flow while passing an input variable in the "Bot Input Text" field.. As the first Ask For Slot in that Bot flow would use the value in that variable as the first input from the customer... Or something like that..

    So if you haven't yet, try to remove any value from being inputed there (In case you have any)



    ------------------------------
    Marcello Jabur
    ------------------------------



  • 7.  RE: Ask for Slot not prompting or waiting for a customer response

    Posted 6 days ago
    Edited by Patrick Rohlf 6 days ago

    Marcello,

    Thank you for your response. You are awesome!

    This put me on the right path for finding a solution. Even though I was: (1) passing the expected slot value from the Bot Input Text field in the originating Inbound Call Flow AND (2) the Ask For Slot was the first Ask action being hit in the Bot Flow (which accurately follows the support documentation), this was always resulting in the unexpected caller experience which I noted in my first post.

    So, the documentation around the Bot Input Text field and the first Ask for action being hit was partially true for my Bot Flow. It was processing the response for the first Ask for Slot, but then not handling the prompting for the second Ask for Slot. I'm not sure how these two actions would be tied together, but it was clearly happening. And adding an Ask for Intent in front of that first Ask for Slot immediately solved the problem.

    Maybe because the first Ask for Slot action didn't need to trigger prompt audio (since it already had a value for that first Ask for Slot), the TTS engine wasn't triggering correctly for the second Ask for Slot action?

    The way that I got around this was to create a new Ask for Intent action and to have that be hit before the Ask for Slot which is what was really driving the caller experience for this particular bot flow.

    Thanks, everyone, for your input and assistance. Cheers!



    ------------------------------
    Patrick Rohlf
    Contact Center Technologies Implementation Engineer
    ------------------------------



  • 8.  RE: Ask for Slot not prompting or waiting for a customer response

    Posted 6 days ago

    Hi Patrick!
    That's awesome, glad to hear it helped you in finding the right solution!!



    ------------------------------
    Marcello Jabur
    ------------------------------



  • 9.  RE: Ask for Slot not prompting or waiting for a customer response

    Posted 3 days ago

    For posterity, here is the final write-up from the Genesys support engineer, in the hopes that it might help another community member in the future...

    Why "Ask for Intent" Solved the Prompt Skipping Issue

    Your intuition about how Bot Input Text affected the TTS pipeline was right on the mark.

    • The Mechanism: When you pass a string in Bot Input Text from an inbound call flow, Architect immediately processes that text against the very first Ask for ...action in the bot flow.
    • The Glitch: When that first action was an Ask for Slot, Genesys evaluated the Bot Input Text, successfully filled the slot without needing to play the first prompt, and immediately advanced to the second Ask for Slot. However, because the TTS audio stream was never initialized on turn 1, the bot engine bypassed prompt playback on turn 2 as well-essentially treating the session as if it were still in a non-prompting state.
    • The Fix: Inserting an Ask for Intent as the lead action forces the bot engine into a full intent-recognition dialog state.
    • Bot Input Text triggers the intent classification, and when control moves to your Ask for Slot, the audio player pipeline initializes properly and plays the prompt as expected.

    ----------------------------------------------------------------

    I replied with a suggestion for updating the documentation and/or hint callout for 'Bot Input Text' field...

    I don't know what the internal process is for requesting updates to support documentation, but I think that this situation deserves consideration. I spent days with a broken flow which I spent many hours troubleshooting. I ended up needing to create a support ticket, which you had to spend hours supporting.

    Bottom line: Much would have been resolved if in the 'Bot Input Text' hint/documentation, it stated... "Supplies an initial utterance to the bot that will be processed by the first Ask action executed in the bot flow. {additional callout} Note: it is suggested that an Ask for Intent action is the first Ask action executed in the Bot Flow, so that the TTS audio stream is initialized correctly within the Bot Flow."

    If this one extra sentence existed, there would have been a lot of time saved on both sides. And it would help any future users who might run into the same issue.



    ------------------------------
    Patrick Rohlf
    Contact Center Technologies Implementation Engineer
    ------------------------------



  • 10.  RE: Ask for Slot not prompting or waiting for a customer response

    Posted 3 days ago

    Hi Patrick,

    Thank you for sharing.



    ------------------------------
    Phaneendra
    Technical Solutions Consultant
    ------------------------------
