Hi,

Has anyone had issues with using a POST API (/api/v2/analytics/flows/observations/query/) from within a inbound call flow. I'm attempting to understand flow metrics and based on the result route differently.

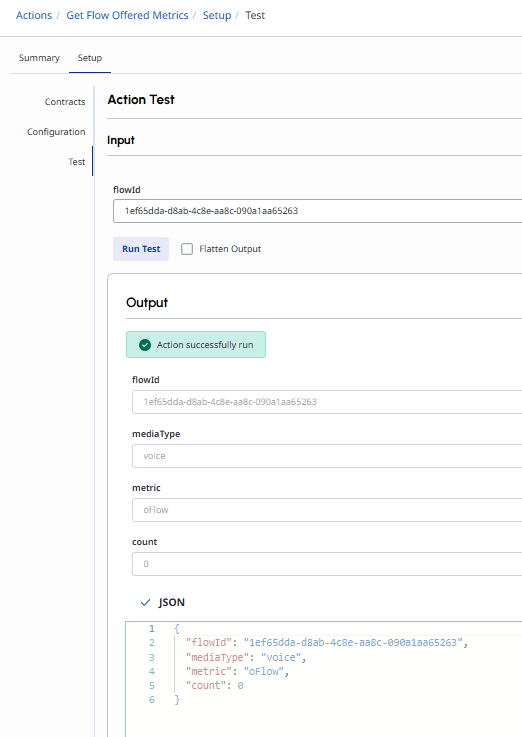

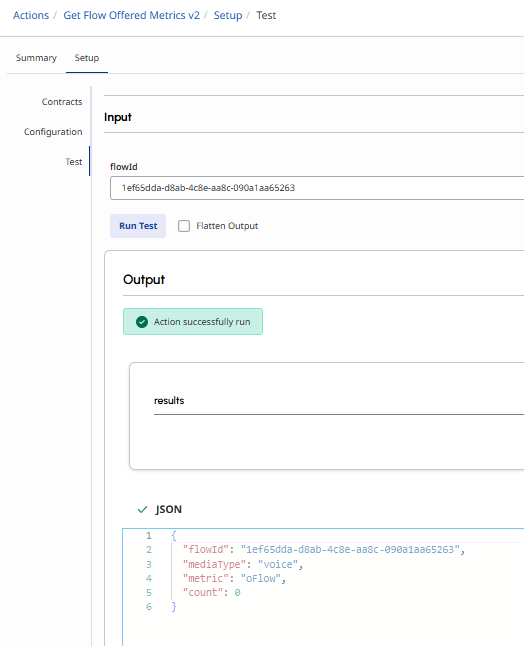

I've used the above API and in my data action is works perfectly, but seeing a failure when running the data action in a architect flow. If I remove the variable assigned to the 'oflow' 'count' then the data action does not fail, but if used it fails all the time and I'm thinking it's to do with the output being a integer collection.

Any ideas ?

Regards,

Hi Neil,

From what I can see and understand from the screenshots, it doesn't look like the integer value itself is the issue. The Data Action test succeeds, and the count value for the oFlow metric is valid.

It looks more like a response structure / collection issue. The Analytics API response includes nested arrays under results and data, so fields like metric and stats.count are part of a collection. If Architect is trying to map those directly into single-value variables, that can fail even though the API response itself is fine.

If you keep the current response structure, you may need to use GetAt() or similar collection handling in Architect to access the first item in those arrays. The cleaner option, though, would be to flatten the Data Action response in the success template and only return the exact fields you need.

For example, instead of returning the full nested response structure, the success template could return something like:

{
  "flowId": "${rawResult.results[0].group.flowId}",
  "mediaType": "${rawResult.results[0].group.mediaType}",
  "metric": "${rawResult.results[0].data[0].metric}",
  "count": ${rawResult.results[0].data[0].stats.count}
}

If you go that route, I would also update the output contract to match the flattened response, for example

• flowId = string
• mediaType = string
• metric = string
• count = integer

That should make the Architect mapping much cleaner and more reliable.

Hope this helps and hopefully someone from community might add more to this.

Hi,

Has anyone had issues with using a POST API (/api/v2/analytics/flows/observations/query/) from within a inbound call flow. I'm attempting to understand flow metrics and based on the result route differently.

I've used the above API and in my data action is works perfectly, but seeing a failure when running the data action in a architect flow. If I remove the variable assigned to the 'oflow' 'count' then the data action does not fail, but if used it fails all the time and I'm thinking it's to do with the output being a integer collection.

Any ideas ?

Regards,

Hi,

Thank you for responding. Most likely my syntax but the response map json is giving an error ?

Regards,

------------------------------
Neil Jones
Voice Comms Lead
Awaze Uk
neil.jones@awaze.com

Original Message:
Sent: 04-10-2026 05:18
From: Phaneendra Avatapalli
Subject: Data Action Failure on Integer Collection

Hi Neil,

From what I can see and understand from the screenshots, it doesn't look like the integer value itself is the issue. The Data Action test succeeds, and the count value for the oFlow metric is valid.

It looks more like a response structure / collection issue. The Analytics API response includes nested arrays under results and data, so fields like metric and stats.count are part of a collection. If Architect is trying to map those directly into single-value variables, that can fail even though the API response itself is fine.

If you keep the current response structure, you may need to use GetAt() or similar collection handling in Architect to access the first item in those arrays. The cleaner option, though, would be to flatten the Data Action response in the success template and only return the exact fields you need.

For example, instead of returning the full nested response structure, the success template could return something like:

{
  "flowId": "${rawResult.results[0].group.flowId}",
  "mediaType": "${rawResult.results[0].group.mediaType}",
  "metric": "${rawResult.results[0].data[0].metric}",
  "count": ${rawResult.results[0].data[0].stats.count}
}

If you go that route, I would also update the output contract to match the flattened response, for example

• flowId = string
• mediaType = string
• metric = string
• count = integer

That should make the Architect mapping much cleaner and more reliable.

Hope this helps and hopefully someone from community might add more to this.

------------------------------
Phaneendra
Technical Solutions Consultant

Original Message:
Sent: 04-10-2026 03:58
From: Neil Jones
Subject: Data Action Failure on Integer Collection

Hi,

Has anyone had issues with using a POST API (/api/v2/analytics/flows/observations/query/) from within a inbound call flow. I'm attempting to understand flow metrics and based on the result route differently.

I've used the above API and in my data action is works perfectly, but seeing a failure when running the data action in a architect flow. If I remove the variable assigned to the 'oflow' 'count' then the data action does not fail, but if used it fails all the time and I'm thinking it's to do with the output being a integer collection.

Any ideas ?

Regards,

#Architect
#DataActions

------------------------------
Neil Jones
Voice Comms Lead
Awaze Uk
neil.jones@awaze.com
------------------------------

Hi Neil

I Believe your count needs to be in quotation marks even if it's an integer.

"translationMap": {
  "flowId": "${rawResult.results[0].group.flowId}",
  "mediaType": "${rawResult.results[0].group.mediaType}",
  "metric": "${rawResult.results[0].data[0].metric}",
  "count": "${rawResult.results[0].data[0].stats.count}"   <<<<<<<<<<<< HERE
},
"translationMapDefaults": {}

------------------------------
Kaio Oliveira
GCP - GCQM - GCS - GCA - GCD - GCO - GPE & GPR - GCWM

PS.: I apologize if there are any mistakes in my English; my primary language is Portuguese-Br.

Original Message:
Sent: 04-13-2026 10:10
From: Neil Jones
Subject: Data Action Failure on Integer Collection

Hi,

Thank you for responding. Most likely my syntax but the response map json is giving an error ?

Regards,

------------------------------
Neil Jones
Voice Comms Lead
Awaze Uk
neil.jones@awaze.com

Original Message:
Sent: 04-10-2026 05:18
From: Phaneendra Avatapalli
Subject: Data Action Failure on Integer Collection

Hi Neil,

From what I can see and understand from the screenshots, it doesn't look like the integer value itself is the issue. The Data Action test succeeds, and the count value for the oFlow metric is valid.

It looks more like a response structure / collection issue. The Analytics API response includes nested arrays under results and data, so fields like metric and stats.count are part of a collection. If Architect is trying to map those directly into single-value variables, that can fail even though the API response itself is fine.

If you keep the current response structure, you may need to use GetAt() or similar collection handling in Architect to access the first item in those arrays. The cleaner option, though, would be to flatten the Data Action response in the success template and only return the exact fields you need.

For example, instead of returning the full nested response structure, the success template could return something like:

{
  "flowId": "${rawResult.results[0].group.flowId}",
  "mediaType": "${rawResult.results[0].group.mediaType}",
  "metric": "${rawResult.results[0].data[0].metric}",
  "count": ${rawResult.results[0].data[0].stats.count}
}

If you go that route, I would also update the output contract to match the flattened response, for example

• flowId = string
• mediaType = string
• metric = string
• count = integer

That should make the Architect mapping much cleaner and more reliable.

Hope this helps and hopefully someone from community might add more to this.

------------------------------
Phaneendra
Technical Solutions Consultant

Original Message:
Sent: 04-10-2026 03:58
From: Neil Jones
Subject: Data Action Failure on Integer Collection

Hi,

Has anyone had issues with using a POST API (/api/v2/analytics/flows/observations/query/) from within a inbound call flow. I'm attempting to understand flow metrics and based on the result route differently.

I've used the above API and in my data action is works perfectly, but seeing a failure when running the data action in a architect flow. If I remove the variable assigned to the 'oflow' 'count' then the data action does not fail, but if used it fails all the time and I'm thinking it's to do with the output being a integer collection.

Any ideas ?

Regards,

#Architect
#DataActions

------------------------------
Neil Jones
Voice Comms Lead
Awaze Uk
neil.jones@awaze.com
------------------------------

Thanks Kaio that may help with the immediate JSON syntax error around count.

If it still does not work after that, another option to try may be using the nested paths in the translationMap and then flattening the response in the successTemplate, for example:

{
  "translationMap": {
    "flowId": "$.results[0].group.flowId",
    "mediaType": "$.results[0].group.mediaType",
    "metric": "$.results[0].data[0].metric",
    "count": "$.results[0].data[0].stats.count"
  },
  "translationMapDefaults": {},
  "successTemplate": "{\"flowId\":\"${flowId}\",\"mediaType\":\"${mediaType}\",\"metric\":\"${metric}\",\"count\":${count}}"
}

My thinking is that quoting count may resolve the JSON validation issue first, and if the action still has trouble in Architect after that, flattening the response may be the next thing to try.

Hi Neil

I Believe your count needs to be in quotation marks even if it's an integer.

"translationMap": {
  "flowId": "${rawResult.results[0].group.flowId}",
  "mediaType": "${rawResult.results[0].group.mediaType}",
  "metric": "${rawResult.results[0].data[0].metric}",
  "count": "${rawResult.results[0].data[0].stats.count}"   <<<<<<<<<<<< HERE
},
"translationMapDefaults": {}

------------------------------
Kaio Oliveira
GCP - GCQM - GCS - GCA - GCD - GCO - GPE & GPR - GCWM

PS.: I apologize if there are any mistakes in my English; my primary language is Portuguese-Br.

Original Message:
Sent: 04-13-2026 10:10
From: Neil Jones
Subject: Data Action Failure on Integer Collection

Hi,

Thank you for responding. Most likely my syntax but the response map json is giving an error ?

Regards,

------------------------------
Neil Jones
Voice Comms Lead
Awaze Uk
neil.jones@awaze.com

Original Message:
Sent: 04-10-2026 05:18
From: Phaneendra Avatapalli
Subject: Data Action Failure on Integer Collection

Hi Neil,

From what I can see and understand from the screenshots, it doesn't look like the integer value itself is the issue. The Data Action test succeeds, and the count value for the oFlow metric is valid.

It looks more like a response structure / collection issue. The Analytics API response includes nested arrays under results and data, so fields like metric and stats.count are part of a collection. If Architect is trying to map those directly into single-value variables, that can fail even though the API response itself is fine.

If you keep the current response structure, you may need to use GetAt() or similar collection handling in Architect to access the first item in those arrays. The cleaner option, though, would be to flatten the Data Action response in the success template and only return the exact fields you need.

For example, instead of returning the full nested response structure, the success template could return something like:

{
  "flowId": "${rawResult.results[0].group.flowId}",
  "mediaType": "${rawResult.results[0].group.mediaType}",
  "metric": "${rawResult.results[0].data[0].metric}",
  "count": ${rawResult.results[0].data[0].stats.count}
}

If you go that route, I would also update the output contract to match the flattened response, for example

• flowId = string
• mediaType = string
• metric = string
• count = integer

That should make the Architect mapping much cleaner and more reliable.

Hope this helps and hopefully someone from community might add more to this.

------------------------------
Phaneendra
Technical Solutions Consultant

Original Message:
Sent: 04-10-2026 03:58
From: Neil Jones
Subject: Data Action Failure on Integer Collection

Hi,

Has anyone had issues with using a POST API (/api/v2/analytics/flows/observations/query/) from within a inbound call flow. I'm attempting to understand flow metrics and based on the result route differently.

I've used the above API and in my data action is works perfectly, but seeing a failure when running the data action in a architect flow. If I remove the variable assigned to the 'oflow' 'count' then the data action does not fail, but if used it fails all the time and I'm thinking it's to do with the output being a integer collection.

Any ideas ?

Regards,

#Architect
#DataActions

------------------------------
Neil Jones
Voice Comms Lead
Awaze Uk
neil.jones@awaze.com
------------------------------

Hi Neil

I Believe your count needs to be in quotation marks even if it's an integer.

"translationMap": {
  "flowId": "${rawResult.results[0].group.flowId}",
  "mediaType": "${rawResult.results[0].group.mediaType}",
  "metric": "${rawResult.results[0].data[0].metric}",
  "count": "${rawResult.results[0].data[0].stats.count}"   <<<<<<<<<<<< HERE
},
"translationMapDefaults": {}

------------------------------
Kaio Oliveira
GCP - GCQM - GCS - GCA - GCD - GCO - GPE & GPR - GCWM

PS.: I apologize if there are any mistakes in my English; my primary language is Portuguese-Br.

Original Message:
Sent: 04-13-2026 10:10
From: Neil Jones
Subject: Data Action Failure on Integer Collection

Hi,

Thank you for responding. Most likely my syntax but the response map json is giving an error ?

Regards,

------------------------------
Neil Jones
Voice Comms Lead
Awaze Uk
neil.jones@awaze.com

Original Message:
Sent: 04-10-2026 05:18
From: Phaneendra Avatapalli
Subject: Data Action Failure on Integer Collection

Hi Neil,

From what I can see and understand from the screenshots, it doesn't look like the integer value itself is the issue. The Data Action test succeeds, and the count value for the oFlow metric is valid.

It looks more like a response structure / collection issue. The Analytics API response includes nested arrays under results and data, so fields like metric and stats.count are part of a collection. If Architect is trying to map those directly into single-value variables, that can fail even though the API response itself is fine.

If you keep the current response structure, you may need to use GetAt() or similar collection handling in Architect to access the first item in those arrays. The cleaner option, though, would be to flatten the Data Action response in the success template and only return the exact fields you need.

For example, instead of returning the full nested response structure, the success template could return something like:

{
  "flowId": "${rawResult.results[0].group.flowId}",
  "mediaType": "${rawResult.results[0].group.mediaType}",
  "metric": "${rawResult.results[0].data[0].metric}",
  "count": ${rawResult.results[0].data[0].stats.count}
}

If you go that route, I would also update the output contract to match the flattened response, for example

• flowId = string
• mediaType = string
• metric = string
• count = integer

That should make the Architect mapping much cleaner and more reliable.

Hope this helps and hopefully someone from community might add more to this.

------------------------------
Phaneendra
Technical Solutions Consultant

Original Message:
Sent: 04-10-2026 03:58
From: Neil Jones
Subject: Data Action Failure on Integer Collection

Hi,

Has anyone had issues with using a POST API (/api/v2/analytics/flows/observations/query/) from within a inbound call flow. I'm attempting to understand flow metrics and based on the result route differently.

I've used the above API and in my data action is works perfectly, but seeing a failure when running the data action in a architect flow. If I remove the variable assigned to the 'oflow' 'count' then the data action does not fail, but if used it fails all the time and I'm thinking it's to do with the output being a integer collection.

Any ideas ?

Regards,

#Architect
#DataActions

------------------------------
Neil Jones
Voice Comms Lead
Awaze Uk
neil.jones@awaze.com
------------------------------

Thank you Kaio.

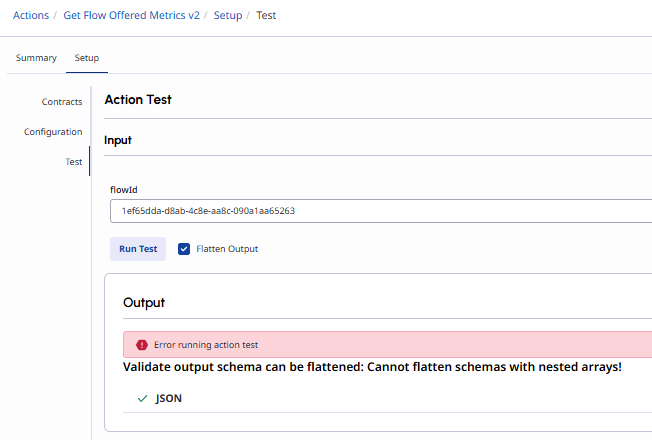

Did fix the immediate json error, but sadly the data action still fails.

Regards,

Hi Neil

I Believe your count needs to be in quotation marks even if it's an integer.

"translationMap": {
  "flowId": "${rawResult.results[0].group.flowId}",
  "mediaType": "${rawResult.results[0].group.mediaType}",
  "metric": "${rawResult.results[0].data[0].metric}",
  "count": "${rawResult.results[0].data[0].stats.count}"   <<<<<<<<<<<< HERE
},
"translationMapDefaults": {}

------------------------------
Kaio Oliveira
GCP - GCQM - GCS - GCA - GCD - GCO - GPE & GPR - GCWM

PS.: I apologize if there are any mistakes in my English; my primary language is Portuguese-Br.

Original Message:
Sent: 04-13-2026 10:10
From: Neil Jones
Subject: Data Action Failure on Integer Collection

Hi,

Thank you for responding. Most likely my syntax but the response map json is giving an error ?

Regards,

------------------------------
Neil Jones
Voice Comms Lead
Awaze Uk
neil.jones@awaze.com

Original Message:
Sent: 04-10-2026 05:18
From: Phaneendra Avatapalli
Subject: Data Action Failure on Integer Collection

Hi Neil,

From what I can see and understand from the screenshots, it doesn't look like the integer value itself is the issue. The Data Action test succeeds, and the count value for the oFlow metric is valid.

It looks more like a response structure / collection issue. The Analytics API response includes nested arrays under results and data, so fields like metric and stats.count are part of a collection. If Architect is trying to map those directly into single-value variables, that can fail even though the API response itself is fine.

If you keep the current response structure, you may need to use GetAt() or similar collection handling in Architect to access the first item in those arrays. The cleaner option, though, would be to flatten the Data Action response in the success template and only return the exact fields you need.

For example, instead of returning the full nested response structure, the success template could return something like:

{
  "flowId": "${rawResult.results[0].group.flowId}",
  "mediaType": "${rawResult.results[0].group.mediaType}",
  "metric": "${rawResult.results[0].data[0].metric}",
  "count": ${rawResult.results[0].data[0].stats.count}
}

If you go that route, I would also update the output contract to match the flattened response, for example

• flowId = string
• mediaType = string
• metric = string
• count = integer

That should make the Architect mapping much cleaner and more reliable.

Hope this helps and hopefully someone from community might add more to this.

------------------------------
Phaneendra
Technical Solutions Consultant

Original Message:
Sent: 04-10-2026 03:58
From: Neil Jones
Subject: Data Action Failure on Integer Collection

Hi,

Has anyone had issues with using a POST API (/api/v2/analytics/flows/observations/query/) from within a inbound call flow. I'm attempting to understand flow metrics and based on the result route differently.

I've used the above API and in my data action is works perfectly, but seeing a failure when running the data action in a architect flow. If I remove the variable assigned to the 'oflow' 'count' then the data action does not fail, but if used it fails all the time and I'm thinking it's to do with the output being a integer collection.

Any ideas ?

Regards,

#Architect
#DataActions

------------------------------
Neil Jones
Voice Comms Lead
Awaze Uk
neil.jones@awaze.com
------------------------------

Hi Neil, can you try below

{
  "translationMap": {
    "flowId": "$.results[0].group.flowId",
    "mediaType": "$.results[0].group.mediaType",
    "metric": "$.results[0].data[0].metric",
    "count": "$.results[0].data[0].stats.count"
  },
  "translationMapDefaults": {},
  "successTemplate": "{\"flowId\":\"${flowId}\",\"mediaType\":\"${mediaType}\",\"metric\":\"${metric}\",\"count\":${count}}"
}

Thank you Kaio.

Did fix the immediate json error, but sadly the data action still fails.

Regards,

Hi Neil

I Believe your count needs to be in quotation marks even if it's an integer.

"translationMap": {
  "flowId": "${rawResult.results[0].group.flowId}",
  "mediaType": "${rawResult.results[0].group.mediaType}",
  "metric": "${rawResult.results[0].data[0].metric}",
  "count": "${rawResult.results[0].data[0].stats.count}"   <<<<<<<<<<<< HERE
},
"translationMapDefaults": {}

------------------------------
Kaio Oliveira
GCP - GCQM - GCS - GCA - GCD - GCO - GPE & GPR - GCWM

PS.: I apologize if there are any mistakes in my English; my primary language is Portuguese-Br.

Original Message:
Sent: 04-13-2026 10:10
From: Neil Jones
Subject: Data Action Failure on Integer Collection

Hi,

Thank you for responding. Most likely my syntax but the response map json is giving an error ?

Regards,

------------------------------
Neil Jones
Voice Comms Lead
Awaze Uk
neil.jones@awaze.com

Original Message:
Sent: 04-10-2026 05:18
From: Phaneendra Avatapalli
Subject: Data Action Failure on Integer Collection

Hi Neil,

From what I can see and understand from the screenshots, it doesn't look like the integer value itself is the issue. The Data Action test succeeds, and the count value for the oFlow metric is valid.

It looks more like a response structure / collection issue. The Analytics API response includes nested arrays under results and data, so fields like metric and stats.count are part of a collection. If Architect is trying to map those directly into single-value variables, that can fail even though the API response itself is fine.

If you keep the current response structure, you may need to use GetAt() or similar collection handling in Architect to access the first item in those arrays. The cleaner option, though, would be to flatten the Data Action response in the success template and only return the exact fields you need.

For example, instead of returning the full nested response structure, the success template could return something like:

{
  "flowId": "${rawResult.results[0].group.flowId}",
  "mediaType": "${rawResult.results[0].group.mediaType}",
  "metric": "${rawResult.results[0].data[0].metric}",
  "count": ${rawResult.results[0].data[0].stats.count}
}

If you go that route, I would also update the output contract to match the flattened response, for example

• flowId = string
• mediaType = string
• metric = string
• count = integer

That should make the Architect mapping much cleaner and more reliable.

Hope this helps and hopefully someone from community might add more to this.

------------------------------
Phaneendra
Technical Solutions Consultant

Original Message:
Sent: 04-10-2026 03:58
From: Neil Jones
Subject: Data Action Failure on Integer Collection

Hi,

Has anyone had issues with using a POST API (/api/v2/analytics/flows/observations/query/) from within a inbound call flow. I'm attempting to understand flow metrics and based on the result route differently.

I've used the above API and in my data action is works perfectly, but seeing a failure when running the data action in a architect flow. If I remove the variable assigned to the 'oflow' 'count' then the data action does not fail, but if used it fails all the time and I'm thinking it's to do with the output being a integer collection.

Any ideas ?

Regards,

#Architect
#DataActions

------------------------------
Neil Jones
Voice Comms Lead
Awaze Uk
neil.jones@awaze.com
------------------------------

Hi,

Thanks for all your help...

I've adjusted the success template to "successTemplate": "{\"flowId\":${flowId},\"mediaType\":${mediaType},\"metric\":${metric},\"count\":${count}}" and no errors and response is correct. TBH I think if I use this new data action in my architect flow it will still fail as when running with the 'flatten output' field selected I receive an nested array error.

Full response is:

------------------------------
Neil Jones
Voice Comms Lead
Awaze Uk
neil.jones@awaze.com

Original Message:
Sent: 04-14-2026 03:05
From: Phaneendra Avatapalli
Subject: Data Action Failure on Integer Collection

Hi Neil, can you try below

{
  "translationMap": {
    "flowId": "$.results[0].group.flowId",
    "mediaType": "$.results[0].group.mediaType",
    "metric": "$.results[0].data[0].metric",
    "count": "$.results[0].data[0].stats.count"
  },
  "translationMapDefaults": {},
  "successTemplate": "{\"flowId\":\"${flowId}\",\"mediaType\":\"${mediaType}\",\"metric\":\"${metric}\",\"count\":${count}}"
}

------------------------------
Phaneendra
Technical Solutions Consultant

Original Message:
Sent: 04-14-2026 03:01
From: Neil Jones
Subject: Data Action Failure on Integer Collection

Thank you Kaio.

Did fix the immediate json error, but sadly the data action still fails.

Regards,

------------------------------
Neil Jones
Voice Comms Lead
Awaze Uk
neil.jones@awaze.com

Original Message:
Sent: 04-13-2026 10:28
From: Kaio Oliveira
Subject: Data Action Failure on Integer Collection

Hi Neil

I Believe your count needs to be in quotation marks even if it's an integer.

"translationMap": {
  "flowId": "${rawResult.results[0].group.flowId}",
  "mediaType": "${rawResult.results[0].group.mediaType}",
  "metric": "${rawResult.results[0].data[0].metric}",
  "count": "${rawResult.results[0].data[0].stats.count}"   <<<<<<<<<<<< HERE
},
"translationMapDefaults": {}

------------------------------
Kaio Oliveira
GCP - GCQM - GCS - GCA - GCD - GCO - GPE & GPR - GCWM

PS.: I apologize if there are any mistakes in my English; my primary language is Portuguese-Br.

Original Message:
Sent: 04-13-2026 10:10
From: Neil Jones
Subject: Data Action Failure on Integer Collection

Hi,

Thank you for responding. Most likely my syntax but the response map json is giving an error ?

Regards,

------------------------------
Neil Jones
Voice Comms Lead
Awaze Uk
neil.jones@awaze.com

Original Message:
Sent: 04-10-2026 05:18
From: Phaneendra Avatapalli
Subject: Data Action Failure on Integer Collection

Hi Neil,

From what I can see and understand from the screenshots, it doesn't look like the integer value itself is the issue. The Data Action test succeeds, and the count value for the oFlow metric is valid.

It looks more like a response structure / collection issue. The Analytics API response includes nested arrays under results and data, so fields like metric and stats.count are part of a collection. If Architect is trying to map those directly into single-value variables, that can fail even though the API response itself is fine.

If you keep the current response structure, you may need to use GetAt() or similar collection handling in Architect to access the first item in those arrays. The cleaner option, though, would be to flatten the Data Action response in the success template and only return the exact fields you need.

For example, instead of returning the full nested response structure, the success template could return something like:

{
  "flowId": "${rawResult.results[0].group.flowId}",
  "mediaType": "${rawResult.results[0].group.mediaType}",
  "metric": "${rawResult.results[0].data[0].metric}",
  "count": ${rawResult.results[0].data[0].stats.count}
}

If you go that route, I would also update the output contract to match the flattened response, for example

• flowId = string
• mediaType = string
• metric = string
• count = integer

That should make the Architect mapping much cleaner and more reliable.

Hope this helps and hopefully someone from community might add more to this.

------------------------------
Phaneendra
Technical Solutions Consultant

Original Message:
Sent: 04-10-2026 03:58
From: Neil Jones
Subject: Data Action Failure on Integer Collection

Hi,

Has anyone had issues with using a POST API (/api/v2/analytics/flows/observations/query/) from within a inbound call flow. I'm attempting to understand flow metrics and based on the result route differently.

I've used the above API and in my data action is works perfectly, but seeing a failure when running the data action in a architect flow. If I remove the variable assigned to the 'oflow' 'count' then the data action does not fail, but if used it fails all the time and I'm thinking it's to do with the output being a integer collection.

Any ideas ?

Regards,

#Architect
#DataActions

------------------------------
Neil Jones
Voice Comms Lead
Awaze Uk
neil.jones@awaze.com
------------------------------

Hi Neil,

This screenshot is helpful. The response itself now looks flat and valid, so I don't think the problem is the successTemplate anymore.

The remaining Flatten Output error looks more like the output contract/schema still contains the earlier nested array structure. Even though the returned JSON is now just flowId, mediaType, metric, and count, the action tester seems to still be validating a schema with nested arrays when Flatten Output is selected.

So the next thing I would check is the output contract and make sure it has been simplified to only these fields:

• flowId = string
• mediaType = string
• metric = string
• count = integer

If the contract still contains the old results / data / stats array structure anywhere, I think that would explain the flatten error.

Hope this helps and hopefully someone from community might add more to this.

------------------------------
Phaneendra
Technical Solutions Consultant

Original Message:
Sent: 04-14-2026 04:22
From: Neil Jones
Subject: Data Action Failure on Integer Collection

Hi,

Thanks for all your help...

I've adjusted the success template to "successTemplate": "{\"flowId\":${flowId},\"mediaType\":${mediaType},\"metric\":${metric},\"count\":${count}}" and no errors and response is correct. TBH I think if I use this new data action in my architect flow it will still fail as when running with the 'flatten output' field selected I receive an nested array error.

Full response is:

------------------------------
Neil Jones
Voice Comms Lead
Awaze Uk
neil.jones@awaze.com

Original Message:
Sent: 04-14-2026 03:05
From: Phaneendra Avatapalli
Subject: Data Action Failure on Integer Collection

Hi Neil, can you try below

{
  "translationMap": {
    "flowId": "$.results[0].group.flowId",
    "mediaType": "$.results[0].group.mediaType",
    "metric": "$.results[0].data[0].metric",
    "count": "$.results[0].data[0].stats.count"
  },
  "translationMapDefaults": {},
  "successTemplate": "{\"flowId\":\"${flowId}\",\"mediaType\":\"${mediaType}\",\"metric\":\"${metric}\",\"count\":${count}}"
}

------------------------------
Phaneendra
Technical Solutions Consultant

Original Message:
Sent: 04-14-2026 03:01
From: Neil Jones
Subject: Data Action Failure on Integer Collection

Thank you Kaio.

Did fix the immediate json error, but sadly the data action still fails.

Regards,

------------------------------
Neil Jones
Voice Comms Lead
Awaze Uk
neil.jones@awaze.com

Original Message:
Sent: 04-13-2026 10:28
From: Kaio Oliveira
Subject: Data Action Failure on Integer Collection

Hi Neil

I Believe your count needs to be in quotation marks even if it's an integer.

"translationMap": {
  "flowId": "${rawResult.results[0].group.flowId}",
  "mediaType": "${rawResult.results[0].group.mediaType}",
  "metric": "${rawResult.results[0].data[0].metric}",
  "count": "${rawResult.results[0].data[0].stats.count}"   <<<<<<<<<<<< HERE
},
"translationMapDefaults": {}

------------------------------
Kaio Oliveira
GCP - GCQM - GCS - GCA - GCD - GCO - GPE & GPR - GCWM

PS.: I apologize if there are any mistakes in my English; my primary language is Portuguese-Br.

Original Message:
Sent: 04-13-2026 10:10
From: Neil Jones
Subject: Data Action Failure on Integer Collection

Hi,

Thank you for responding. Most likely my syntax but the response map json is giving an error ?

Regards,

------------------------------
Neil Jones
Voice Comms Lead
Awaze Uk
neil.jones@awaze.com

Original Message:
Sent: 04-10-2026 05:18
From: Phaneendra Avatapalli
Subject: Data Action Failure on Integer Collection

Hi Neil,

From what I can see and understand from the screenshots, it doesn't look like the integer value itself is the issue. The Data Action test succeeds, and the count value for the oFlow metric is valid.

It looks more like a response structure / collection issue. The Analytics API response includes nested arrays under results and data, so fields like metric and stats.count are part of a collection. If Architect is trying to map those directly into single-value variables, that can fail even though the API response itself is fine.

If you keep the current response structure, you may need to use GetAt() or similar collection handling in Architect to access the first item in those arrays. The cleaner option, though, would be to flatten the Data Action response in the success template and only return the exact fields you need.

For example, instead of returning the full nested response structure, the success template could return something like:

{
  "flowId": "${rawResult.results[0].group.flowId}",
  "mediaType": "${rawResult.results[0].group.mediaType}",
  "metric": "${rawResult.results[0].data[0].metric}",
  "count": ${rawResult.results[0].data[0].stats.count}
}

If you go that route, I would also update the output contract to match the flattened response, for example

• flowId = string
• mediaType = string
• metric = string
• count = integer

That should make the Architect mapping much cleaner and more reliable.

Hope this helps and hopefully someone from community might add more to this.

------------------------------
Phaneendra
Technical Solutions Consultant

Original Message:
Sent: 04-10-2026 03:58
From: Neil Jones
Subject: Data Action Failure on Integer Collection

Hi,

Has anyone had issues with using a POST API (/api/v2/analytics/flows/observations/query/) from within a inbound call flow. I'm attempting to understand flow metrics and based on the result route differently.

I've used the above API and in my data action is works perfectly, but seeing a failure when running the data action in a architect flow. If I remove the variable assigned to the 'oflow' 'count' then the data action does not fail, but if used it fails all the time and I'm thinking it's to do with the output being a integer collection.

Any ideas ?

Regards,

#Architect
#DataActions

------------------------------
Neil Jones
Voice Comms Lead
Awaze Uk
neil.jones@awaze.com
------------------------------

Thank you so much for you help - all working as expected both data action in isolation & via architect flow.

As you said just needed to update the output contracts once the comma error was rectified - see below...

Appreciate all your help.

Regards,

------------------------------
Neil Jones
Voice Comms Lead
Awaze Uk
neil.jones@awaze.com

Original Message:
Sent: 04-14-2026 04:46
From: Phaneendra Avatapalli
Subject: Data Action Failure on Integer Collection

Hi Neil,

This screenshot is helpful. The response itself now looks flat and valid, so I don't think the problem is the successTemplate anymore.

The remaining Flatten Output error looks more like the output contract/schema still contains the earlier nested array structure. Even though the returned JSON is now just flowId, mediaType, metric, and count, the action tester seems to still be validating a schema with nested arrays when Flatten Output is selected.

So the next thing I would check is the output contract and make sure it has been simplified to only these fields:

• flowId = string
• mediaType = string
• metric = string
• count = integer

If the contract still contains the old results / data / stats array structure anywhere, I think that would explain the flatten error.

Hope this helps and hopefully someone from community might add more to this.

------------------------------
Phaneendra
Technical Solutions Consultant

Original Message:
Sent: 04-14-2026 04:22
From: Neil Jones
Subject: Data Action Failure on Integer Collection

Hi,

Thanks for all your help...

I've adjusted the success template to "successTemplate": "{\"flowId\":${flowId},\"mediaType\":${mediaType},\"metric\":${metric},\"count\":${count}}" and no errors and response is correct. TBH I think if I use this new data action in my architect flow it will still fail as when running with the 'flatten output' field selected I receive an nested array error.

Full response is:

------------------------------
Neil Jones
Voice Comms Lead
Awaze Uk
neil.jones@awaze.com

Original Message:
Sent: 04-14-2026 03:05
From: Phaneendra Avatapalli
Subject: Data Action Failure on Integer Collection

Hi Neil, can you try below

{
  "translationMap": {
    "flowId": "$.results[0].group.flowId",
    "mediaType": "$.results[0].group.mediaType",
    "metric": "$.results[0].data[0].metric",
    "count": "$.results[0].data[0].stats.count"
  },
  "translationMapDefaults": {},
  "successTemplate": "{\"flowId\":\"${flowId}\",\"mediaType\":\"${mediaType}\",\"metric\":\"${metric}\",\"count\":${count}}"
}

------------------------------
Phaneendra
Technical Solutions Consultant

Original Message:
Sent: 04-14-2026 03:01
From: Neil Jones
Subject: Data Action Failure on Integer Collection

Thank you Kaio.

Did fix the immediate json error, but sadly the data action still fails.

Regards,

------------------------------
Neil Jones
Voice Comms Lead
Awaze Uk
neil.jones@awaze.com

Original Message:
Sent: 04-13-2026 10:28
From: Kaio Oliveira
Subject: Data Action Failure on Integer Collection

Hi Neil

I Believe your count needs to be in quotation marks even if it's an integer.

"translationMap": {
  "flowId": "${rawResult.results[0].group.flowId}",
  "mediaType": "${rawResult.results[0].group.mediaType}",
  "metric": "${rawResult.results[0].data[0].metric}",
  "count": "${rawResult.results[0].data[0].stats.count}"   <<<<<<<<<<<< HERE
},
"translationMapDefaults": {}

------------------------------
Kaio Oliveira
GCP - GCQM - GCS - GCA - GCD - GCO - GPE & GPR - GCWM

PS.: I apologize if there are any mistakes in my English; my primary language is Portuguese-Br.

Original Message:
Sent: 04-13-2026 10:10
From: Neil Jones
Subject: Data Action Failure on Integer Collection

Hi,

Thank you for responding. Most likely my syntax but the response map json is giving an error ?

Regards,

------------------------------
Neil Jones
Voice Comms Lead
Awaze Uk
neil.jones@awaze.com

Original Message:
Sent: 04-10-2026 05:18
From: Phaneendra Avatapalli
Subject: Data Action Failure on Integer Collection

Hi Neil,

From what I can see and understand from the screenshots, it doesn't look like the integer value itself is the issue. The Data Action test succeeds, and the count value for the oFlow metric is valid.

It looks more like a response structure / collection issue. The Analytics API response includes nested arrays under results and data, so fields like metric and stats.count are part of a collection. If Architect is trying to map those directly into single-value variables, that can fail even though the API response itself is fine.

If you keep the current response structure, you may need to use GetAt() or similar collection handling in Architect to access the first item in those arrays. The cleaner option, though, would be to flatten the Data Action response in the success template and only return the exact fields you need.

For example, instead of returning the full nested response structure, the success template could return something like:

{
  "flowId": "${rawResult.results[0].group.flowId}",
  "mediaType": "${rawResult.results[0].group.mediaType}",
  "metric": "${rawResult.results[0].data[0].metric}",
  "count": ${rawResult.results[0].data[0].stats.count}
}

If you go that route, I would also update the output contract to match the flattened response, for example

• flowId = string
• mediaType = string
• metric = string
• count = integer

That should make the Architect mapping much cleaner and more reliable.

Hope this helps and hopefully someone from community might add more to this.

------------------------------
Phaneendra
Technical Solutions Consultant

Original Message:
Sent: 04-10-2026 03:58
From: Neil Jones
Subject: Data Action Failure on Integer Collection

Hi,

Has anyone had issues with using a POST API (/api/v2/analytics/flows/observations/query/) from within a inbound call flow. I'm attempting to understand flow metrics and based on the result route differently.

I've used the above API and in my data action is works perfectly, but seeing a failure when running the data action in a architect flow. If I remove the variable assigned to the 'oflow' 'count' then the data action does not fail, but if used it fails all the time and I'm thinking it's to do with the output being a integer collection.

Any ideas ?

Regards,

#Architect
#DataActions

------------------------------
Neil Jones
Voice Comms Lead
Awaze Uk
neil.jones@awaze.com
------------------------------
