Hello, we had the following flow giving us the Archy error 99: Exception info: Cannot read properties of undefined (reading 'ms')

outboundCall:
  name: TestFlow
  description: ""
  division: "TEST_DIVISION"
  startUpRef: "/outboundCall/menus/menu[Main Menu_10]"
  defaultLanguage: fr-ca
  supportedLanguages:
    fr-ca:
      defaultLanguageSkill:
        noValue: true
      textToSpeech:
        defaultEngine:
          defaultVoice: true
  initialGreeting:
    tts: Bonjour. Ceci est un test.
  settingsOutboundCall:
    contactList:
      lit:
        name: TEST_ContactList
    wrapupCode:
      lit:
        name: Laisser un message
  settingsActionDefaults:
    playAudioOnSilence:
      timeout:
        lit:
          seconds: 40
    detectSilence:
      timeout:
        lit:
          seconds: 40
    callData:
      processingPrompt:
        lit:
          name: PromptSystem.processing
    collectInput:
      noEntryTimeout:
        lit:
          seconds: 5
    dialByExtension:
      interDigitTimeout:
        lit:
          seconds: 6
    transferToUser:
      connectTimeout:
        noValue: true
    transferToNumber:
      connectTimeout:
        noValue: true
    transferToGroup:
      connectTimeout:
        noValue: true
    transferToFlowSecure:
      connectTimeout:
        lit:
          seconds: 15
  settingsErrorHandling:
    errorHandling:
      disconnect:
        none: true
    preHandlingAudio:
      tts: Une erreur s'est produite. Veuillez réessayer.
  settingsMenu:
    extensionDialingMaxDelay:
      lit:
        seconds: 1
    listenForExtensionDialing:
      lit: true
    menuSelectionTimeout:
      lit:
        seconds: 10
    repeatCount:
      lit: 3
  settingsPrompts:
    ensureAudioInPrompts: false
    promptMediaToValidate:
      - mediaType: audio
      - mediaType: tts
  settingsSpeechRec:
    completeMatchTimeout:
      lit:
        ms: 100
    incompleteMatchTimeout:
      lit:
        ms: 1500
    maxSpeechLengthTimeout:
      lit:
        seconds: 20
    minConfidenceLevel:
      lit: 50
    asrCompanyDir: none
    asrEnabledOnFlow: true
    suppressRecording: true
  menus:
    - menu:
        name: Main Menu
        refId: Main Menu_10
        settingsMenu:
          extensionDialingMaxDelay:
            lit:
              ms: 0
          listenForExtensionDialing:
            noValue: true
          menuSelectionTimeout:
            lit:
              ms: 1
          repeatCount:
            lit: 0
        settingsSpeechRec:
          completeMatchTimeout:
            noValue: true
          incompleteMatchTimeout:
            noValue: true
          maxSpeechLengthTimeout:
            noValue: true
          minConfidenceLevel:
            noValue: true
        choices:
          - menuDisconnect:
              name: Disconnect
              refId: Disconnect_11
              dtmf: digit_9
              globalDtmf: false
              globalSpeechRecTerms: false
        defaultChildMenuRef: "./choices/menuDisconnect[Disconnect_11]"

After investigating the issue we found that extensionDialingMaxDelay cannot be set to 0. However this flow was directly exported from Genesys Cloud so the export is causing this issue. For now we set the extensionDialingMaxDelay to 1 ms and the menuSelectionTimeout to 2 ms.

We are using version 1.61.0 of the terraform provider.

Please keep us updated if this is looked into. Thank you!

#Archy

------------------------------
William Valin
------------------------------

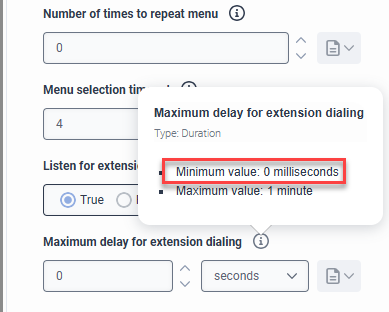

Same issue here. Looks like issue started Archy 2.34.0. Archy Version 2.33.1 still works ok. Hover over "i" info icon as seen below still shows 0 ms is valid so looks like a bug. As William said, .yaml was exported from Architect editor and on attempt to import with Archy 2.34.0, get exit code 99 with "Exception info: Cannot read properties of undefined (reading 'ms')"

I was able to get previous Archy version at https://sdk-cdn.mypurecloud.com/archy/2.33.1/archy-linux.zip which works for time being.

#Archy
