Hi guys

Can anybody point me to a post or article that would help with setting a data/webservices action up that takes results from the json response and populates an array to subsequently loop through in a call flow?

ie if I send a phone number to a service and it returns a list of all the people living at the address associated with that number and their dates of birth

so something comes back like :

"residents":[
  {"firstName":"John", "lastName":"Doe","dob","12-01-1999"},
  {"firstName":"Anna", "lastName":"Smith","dob","13-02-1998"},
  {"firstName":"Peter", "lastName":"Jones","dob","14-03-1997"}
]

I'd want to then loop through each checking dob and do something like if it's the current date, then play "today is .....'s" birthday

Thanks
#ArchitectureandDesign
#Routing(ACD/IVR)

------------------------------
Vaun McCarthy
NTT New Zealand Limited
------------------------------

It supports flat output to Architect, so you would have to take that array and flatten it to something, probably pipe-delimited, then parse it back out in Architect based on the pipe delimiter. I think.

Maybe someone on the Forum at https://developer.mypurecloud.com would have a better idea.

Or @Richard Schott​

------------------------------
George Ganahl GCP (Genesys Cloud), ICCE
Principal Technology Consultant
Genesys
------------------------------

Original Message:
Sent: 05-06-2020 03:34
From: Vaun McCarthy
Subject: Webservices results populating an array

Hi guys

Can anybody point me to a post or article that would help with setting a data/webservices action up that takes results from the json response and populates an array to subsequently loop through in a call flow?

ie if I send a phone number to a service and it returns a list of all the people living at the address associated with that number and their dates of birth

so something comes back like :

"residents":[
  {"firstName":"John", "lastName":"Doe","dob","12-01-1999"},
  {"firstName":"Anna", "lastName":"Smith","dob","13-02-1998"},
  {"firstName":"Peter", "lastName":"Jones","dob","14-03-1997"}
]

I'd want to then loop through each checking dob and do something like if it's the current date, then play "today is .....'s" birthday

Thanks
#ArchitectureandDesign
#Routing(ACD/IVR)

------------------------------
Vaun McCarthy
NTT New Zealand Limited
------------------------------

Hi Vaun,

You can return an array of an object with 3 strings. It's going to show up as three separate collections in Architect, so make sure you get the value from each using the same index while looping through (see example below). It will probably be more work to convert the date to a valid date time to use with the ToDateTime function. You are going to have to parse the current value and format it into a valid format if you cannot modify the API to return a valid format.

Per Architect Help:
_{String text : The String value to convert to a DateTime. The String must be in the following format: YYYY-MM-DDThh:mm:ss[Z|(+|-)hh:mm] where YYYY = 4 digit year, MM = 2 digit month, DD = 2 digit day, hh = 2 digit hour, mm = 2 digit minute and ss = 2 digit second. T is a separator indicating where the time portion starts. [Z|(+|-)hh:mm] represents the offset of the date time from Coordinated Universal Time where Z indicates Coordinated Universal Time (UTC) itself. If "[+|-]hh:mm" is used instead of Z that specifies an offset from UTC.}

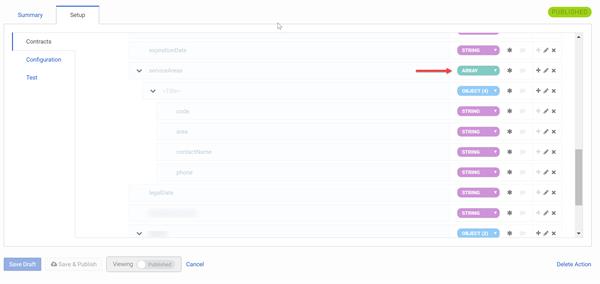

For the array, here is an example of how the action would be configured:
Thanks,
Daniel McLeod

------------------------------
Daniel McLeod
Qsect LLC
------------------------------

Original Message:
Sent: 05-06-2020 03:34
From: Vaun McCarthy
Subject: Webservices results populating an array

Hi guys

Can anybody point me to a post or article that would help with setting a data/webservices action up that takes results from the json response and populates an array to subsequently loop through in a call flow?

ie if I send a phone number to a service and it returns a list of all the people living at the address associated with that number and their dates of birth

so something comes back like :

"residents":[
  {"firstName":"John", "lastName":"Doe","dob","12-01-1999"},
  {"firstName":"Anna", "lastName":"Smith","dob","13-02-1998"},
  {"firstName":"Peter", "lastName":"Jones","dob","14-03-1997"}
]

I'd want to then loop through each checking dob and do something like if it's the current date, then play "today is .....'s" birthday

Thanks
#ArchitectureandDesign
#Routing(ACD/IVR)

------------------------------
Vaun McCarthy
NTT New Zealand Limited
------------------------------

Thanks will try that out

------------------------------
Vaun McCarthy
NTT New Zealand Limited
------------------------------

Original Message:
Sent: 05-06-2020 10:43
From: Daniel McLeod
Subject: Webservices results populating an array

Hi Vaun,

You can return an array of an object with 3 strings. It's going to show up as three separate collections in Architect, so make sure you get the value from each using the same index while looping through (see example below). It will probably be more work to convert the date to a valid date time to use with the ToDateTime function. You are going to have to parse the current value and format it into a valid format if you cannot modify the API to return a valid format.

Per Architect Help:
_{String text : The String value to convert to a DateTime. The String must be in the following format: YYYY-MM-DDThh:mm:ss[Z|(+|-)hh:mm] where YYYY = 4 digit year, MM = 2 digit month, DD = 2 digit day, hh = 2 digit hour, mm = 2 digit minute and ss = 2 digit second. T is a separator indicating where the time portion starts. [Z|(+|-)hh:mm] represents the offset of the date time from Coordinated Universal Time where Z indicates Coordinated Universal Time (UTC) itself. If "[+|-]hh:mm" is used instead of Z that specifies an offset from UTC.}

For the array, here is an example of how the action would be configured:

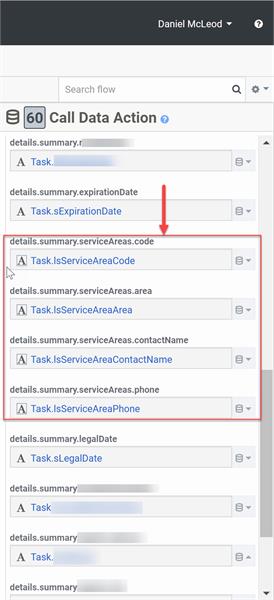

..and how it will look in Architect

Thanks,
Daniel McLeod

------------------------------
Daniel McLeod
Qsect LLC

Original Message:
Sent: 05-06-2020 03:34
From: Vaun McCarthy
Subject: Webservices results populating an array

Hi guys

Can anybody point me to a post or article that would help with setting a data/webservices action up that takes results from the json response and populates an array to subsequently loop through in a call flow?

ie if I send a phone number to a service and it returns a list of all the people living at the address associated with that number and their dates of birth

so something comes back like :

"residents":[
  {"firstName":"John", "lastName":"Doe","dob","12-01-1999"},
  {"firstName":"Anna", "lastName":"Smith","dob","13-02-1998"},
  {"firstName":"Peter", "lastName":"Jones","dob","14-03-1997"}
]

I'd want to then loop through each checking dob and do something like if it's the current date, then play "today is .....'s" birthday

Thanks
#ArchitectureandDesign
#Routing(ACD/IVR)

------------------------------
Vaun McCarthy
NTT New Zealand Limited
------------------------------
